How to connect Amplitude funnel data to Adriel

Detailed instructions to help you set up the Funnel data chart for Amplitude

Lastly modified on: Wed, 20th June, 2024 at 03:18 PM

Prerequisites

• Amplitude chart

Instructions

Step 1: Creating New chart on Amplitude

1. Login to your Amplitude dashboard.

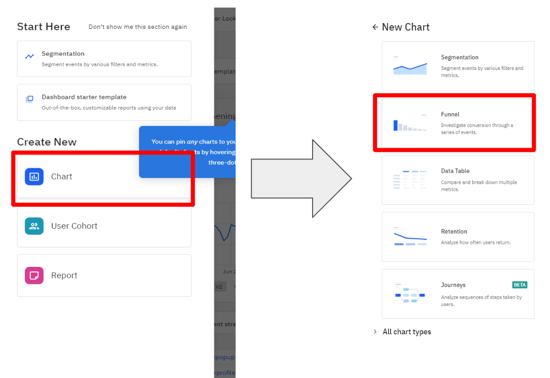

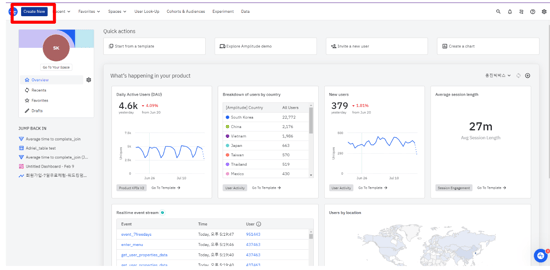

2. Click "Create New" at the upper left of the screen.

3. Click Create New "Chart" and choose "Funnel."

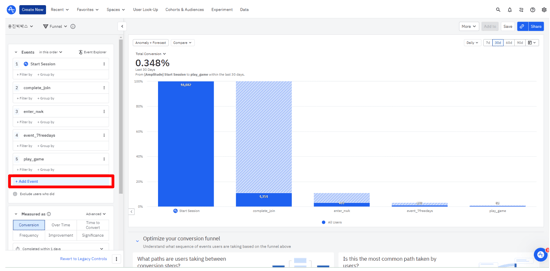

4. Click "+Add Event" at the left menu to add events that you want to see with Funnel chart.

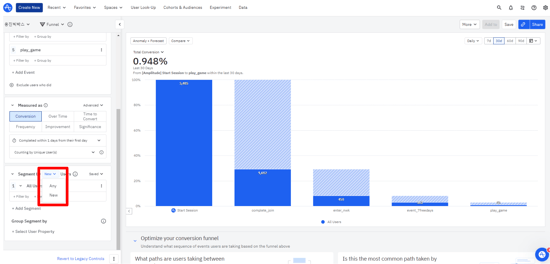

5. Check what kind of user you want to segment by\.

6. Choose measurement option of the chart.

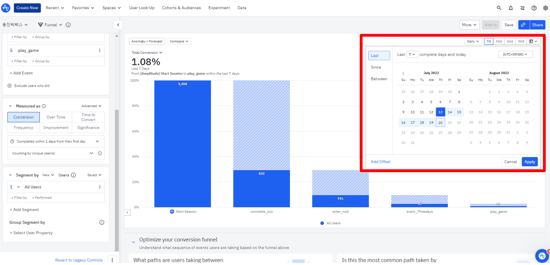

7. Set range of data you want to see on the chart.


If you need more information, refer to Amplitude <Interpret your funnel analysis> documentation.

Step 2: Creating Funnel chart on Adriel dashbaord.

1. Login to Adriel dashboard.

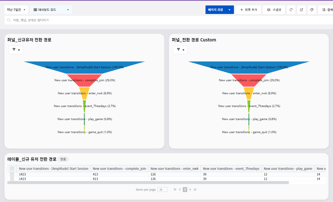

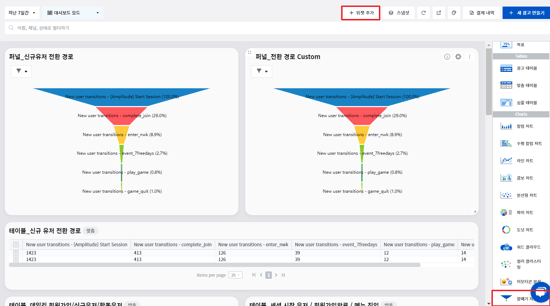

2. Click "+Add widget" at the top and choose "Funnel chart".

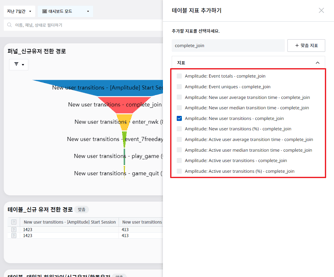

3. Choose data metrics same as Amplitude Funnel chart.

   • transitions is same with conversion at Amplitude



   • Choose same user segment with Amplitude dashboard. New user / Active user(any user)



4. Choose table widget on the right menu to check data in detail

5. Compare with both data whether it’s same or not.
